Advanced 6ka Leakage Protection RCBO Type a for Safety

Overview
FAQ

Overview

Basic Info.

Model NO.	HSM2-4A 40A 100mA
Speed	Normal Type Circuit Breaker
Arc-extinguishing Medium	Air
Installation	Fixed
Structure	RCBO
Poles Number	3p+N
Type	Circuit Breaker
Function	Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection)
Certification	CE, CB, KEMA Keur
Rated Working Voltage	380/400/415 V
Mechanical Life	10,000 Times
Electric Life	4000 Times
Protection Level	IP20
Rated Current	40A
Rated Residual Current	100mA
Transport Package	Carton
Specification	520255200mm
Trademark	Hiselec
Origin	China
HS Code	8536200000
Production Capacity	1, 000, 000 Pieces/Year

Product Description

Technical Data

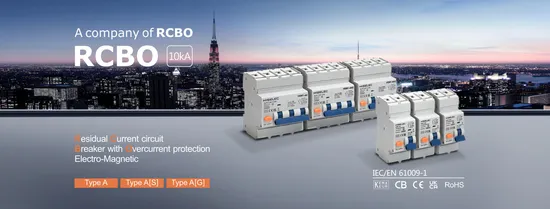

The HSM2 series 6kA type A 1P+N & 3P+N RCBO (Residual current operated circuit breaker with integral over-current protection ) is the perfect solution for a complete protection against over-current and earth fault currents. In two modules width (36mm) and four modules width(72mm) the series ensure, at any time and under any condition, the safety of people, facilities and related equipment.

Forward and reverse wiring is permitted; The top and bottom can be connected to a busbar with a cross section of up to 16 mm² and to wires with a cross section of up to 25 mm²; Leakage indicator (blue/red sign inside the small window) makes it easy to check the source of product faults and reduces maintenance time;

Enhanced Safety Features: This product provides overload and short circuit protection to ensure safe and reliable operation of circuits in domestic, commercial and residential applications.

HIGH QUALITY CONSTRUCTION: With high quality materials and construction, this miniature circuit breaker provides reliable performance and durability that meets the expectations of demanding users.

Versatile design: The air switch is designed for both domestic and commercial use, making it a versatile solution for a wide range of electrical applications, including high traffic areas or areas with high electricity demand.

	Type			HSM2-2A	HSM2-4A	HSM2X-4A
	Standards			IEC/EN 61009-1, IEC/EN 61009-2-1;
	Certificate			KEMA KEUR, CB, CE, UKCA, RoHS
	Country of origin			CHINA
Electrical features	Type (wave form of the earth leakage sensed)			Type A, Type A[S], Type A[G] Type AC
	Number of poles			1P+N	3P+N
	Rated current	In	A	6, 10, 13, 16, 20, 25, 32, 40, 50, 63 A	6, 10, 13, 16, 20, 25, 32, 40 A	50, 63 A
	Rated sensitivity	IΔn	mA	10, 30, 100, 300 mA	30, 100, 300 mA	30, 100, 300 mA
	Rated voltage	Ue	V	220/230/240 V	380/400/415 V	380/400/415 V
	Operating time	Type A / Type AC		Instantaneous	Instantaneous	Instantaneous
		Type A[S]		-	-	10 ms delay
		Type A[G]		-	-	40 ms delay
	Insulation voltage	Ui	V	500V AC
	Overvoltage category			III
	Pollution degree			2
	Operating voltage of circuit test		V	187 - 264 V	230 - 485 V	230 - 485 V
	Rated frequency		Hz	50/60 Hz
	Rated breaking capacity acc. to IEC/EN 61009-1	Icn	A	6,000 A
	Rated breaking capacity acc. to IEC/EN 64947-2 (Only referring to short circuit test)	Icu	A	10,000 A
		Ics	A	5,000 A (50%Icu)
	Rated residual breaking capacity acc.to IEC/EN 61009-1	IΔm	A	3000 A
	Rated impulse withstand voltage (1.2/50)	Uimp	kV	4 kV
	Dielectric test voltage at ind. freq. for 1 min.		kV	2.5 kV (50/60Hz, 1 min.)
	Thermomagnetic release - characteristics			Characteristics B: 3In - 5In
				Characteristics C: 5In - 10In
	Energy limiting class acc. to EN 61009-1			3
	Surge current resistance (wave 8/20)		A	3000 A
Mechanical features	Housing			Insulation group I - II, RAL 7035
	Toggle			Insulation group II, RAL 5017
	Test button			Insulation group II, RAL 2000
	Contact position indication			Green / Red window
	Earth fault trip indication			White window
	Electrical life	Operations		4000 cycles
	Mechanical life	Operations		10000 cycles
	Protection degree acc. to EN 60529	Housing		IP4X
		Terminals		IP2X
	Shock resistance acc. to IEC/EN 60068-2-27			25g - 2 shocks - 13ms
	Vibration resistance acc. to IEC/EN 60068-2-6			0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
	Environmental conditions (damp heat) acc. to IEC/EN 60068-2-30		°C/RH	28 cycles with 55°C/90-96% and 25°C/95-100%
	Reference temperature for setting of thermal element		°C	30 °C
	Ambient temperature (with daily average ≤ +35 °C)		°C	-25… +40 °C
	Storage temperature		°C	-40… +70 °C

Installation	Terminal type			Twin-purpose terminal (lift / open-mouthed)
	Terminal size for cables	bottom / top	mm²	25/35 mm²
	Terminal size for PIN busbar	bottom / top	mm²	10/16 mm²
	Terminal size for FORK busbar	bottom / top	mm²	M6 - 10/16 mm²
	Solid /stranded wiring			1x 1mm² - 35mm² 2 x 1mm² - 16mm² *
	Flexible wires with or without ferrules			1x 1mm² - 25mm² 2 x 1mm² - 10mm² *
	Tightening torque	bottom / top		2 Nm
	Stripping length of the cable			10mm
	Mounting			On DIN rail EN 60715 (35mm) by means of mounting clip
	Mounting position			Any
	Connect from			Top/bottom terminals
	Dimensions (H x W x D)		mm	83 x 36 x 72 mm	83 x 72 x 72 mm	88 x 81 x 72 mm
	Weight		kg	0.19 kg	0.42 kg	0.47 kg
Packing	Packing A (Individual box)	Quantity	pieces	1	1	1
		Dimension (HWD)	mm	904080 mm	907881 mm	958682 mm
		Weight	kg	0.2 kg	0.43 kg	0.48 kg
	Packing B (*A) (Middle box)	Quantity	pieces	6	3	2
		Dimension (HWD)	mm	2559591.2 mm	2429889 mm	2009087 mm
		Weight	kg	1.3 kg	1.3 kg	1.3 kg
	Packing C (*B) (Master carton)	Quantity	pieces	60	30	20
		Dimension (HWD)	mm	510275200 mm	520255200 mm	470210190 mm
		Weight	kg	14.5 kg	14.5 kg	11 kg
Combination with auxiliary elements	Auxiliary contact			Yes	Yes	NA (yes)
	Allarm contact			Yes	Yes	NA (yes)
	Shunt trip			NA (yes)	NA (yes)	NA (yes)
	Auxiliary contact for bottom fitting			NA (yes)	NA (yes)	NA (yes)
	Undervoltage release			NA (yes)	NA (yes)	NA (yes)
	Overvoltage release			NA (yes)	NA (yes)	NA (yes)
	Motor operating device			NA (yes)	NA (yes)	NA (yes)
