Overview

Basic Info.

Voltage	12/24/48V
Current	20-300A
Industry Standard	SAE
Standard	IATF:Ts 16949
Transport Package	Stand Packing
Specification	E9
Trademark	Victor
Origin	China
HS Code	8536300000
Production Capacity	50000/Month

Product Description

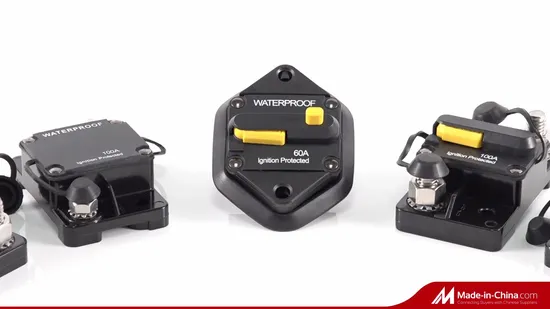

Stud Type Plug-in Type Miniature DC Circuit Breaker

1. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 2.How long is your delivery time? 20-40 working days after all information is confirmed (according to different products) 3. How do I get a quote from your company? Send your message to our sales staff in the input box below and we will get back to you within a few hours on business days. Or you can contact us directly through the deal manager (click Chat Now on the right side of this page).

Product Parameters

E9 series

Temperature controller specification
Unipolar temperature breaker
Evaluation:	T1:30-250A@ 32VdcT3:30-250A@48Vdc
Disconnection parameters:	T1:30-250A,5KA@ 32VdcT3:30-150A,3KA@48Vdc(Switchable);Ultra Hi-A,3KA@42Vdc
Operating temperature parameters:	-25ºF(-32ºC)-180ºF(82ºC)
Storage temperature:	-30ºF(-34ºC)-149ºF(125ºC)
Material Science:	UL thermoplastics 94V-0
Bolt specification:	M6, M10 and 1 / 4 "per inch - 28 threads
Rated torque:	50 in / lb (5.6nm) maximum
Protection level:	IP67
Compliance:	SAE j1625; SAE j1171, ul1500 combustion protection
Main applications:	Auxiliary circuits for electrical systems of trucks, buses and RV ships Battery Charger Direct current sound Surface mount, protective stud insulator included.
Model code
model	1: E91; 2: E92; 3: E934: E94; 5: E95; 6: E967: E97; 8: E98; 9: E99
Current	30-250A (T1)30-150A (T3)
Bolt size	(M6, M10 and 1 / 4 "per inch - 28 threads)
Customer code	(Get the code from factory)
X SEMS code	9: Sems, stainless8: Hex flange nut, stainless0: Sems, iron with zinc plated
Y Packing method	6: Sems installed, box each pack7: Sems installed, box each pack with bus-bar x 28: Sems bulk, barriers pack9: Sems installed, barriers pack

Dimensional Outline Drawing
